InsuliteTiles

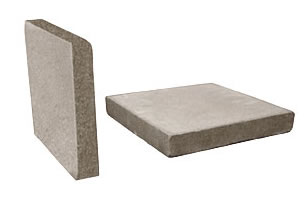

Thermi tile is Cement based product manufactured with specially treated MICA, exploited vermiculite and specialty chemicals. Thermi tiles are manufactured under team of engineers in controlled environment to make sure consistency of properties. It's free from harmful and hazardous material like asbestos. Thermi tiles are made in different colors, shapes and designs. This is one of the easy products to installation. It has to laid over cement mortar after making slope on terrace. Its gives very aesthetic look over terrace if installed in single or multi color based on designs. Refer Attached Photo, Only standard Color, Shape and designs are under production. Non standard products will need specific lead time and volume of business..
Details
More Products
It is one of the most effective premium quality acrylic polymer water based waterproofing liquid and bonding agent for old and new cementations substrates. It offers excellent water resistant capabilities with outstanding combination of internal flexibility and hardness. It carries water reducing properties with negative water proofing properties Feature & Benefits Chloride content - contains no chloride admixture, Offers an impermeable coating; quite good as ..... read more.
Crackfill Xpert Ready to use Crack filler for internal & external surface cracks in plaster.
Thermi tile should be laid over roof after preparing base of water proofing. Simply made cement mortar should be spread in 25 to 50mm thickness over roof. Thermi tile should be laid over it keeping water level into consideration.
Size of roofing Tile

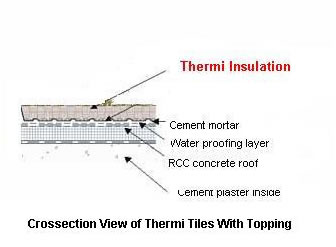

(i) 250 x 250 x 38 mm to 40 mm -- without toping (ii)250 x 250 x 63 mm to 63 mm -- with toping (which preserve its original colors)
Bulk Density
0.085 gm/cm3
Thermal Conductivity
0.098-0.120 W/mK (at 50° C)
Flexural Strength
3.00 N/mm2
Compressive Strength
3.50 N/mm2

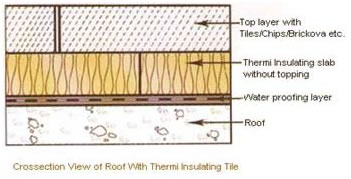

Thermi tile without topping works as sandwich between concrete and top layer of Chips or tiles or brick ova. After water proofing of roof lay these tile with light mortar and put covering layer of marbles, Chips or tile as required. This is one of the most economical way to insulate roof at that standard quality. The amount of hear reduction on highest among all available solutions.
